Butt weld pipe fittings Product series — Carbon steel / Stainless steel · SCH5 / SCH160
Choose the turning angle and bend radius, then specify both end diameters and wall thicknesses. Include tangent lengths when installation space is restricted.
Product illustration; final geometry follows the approved drawing.
Pipe Fittings

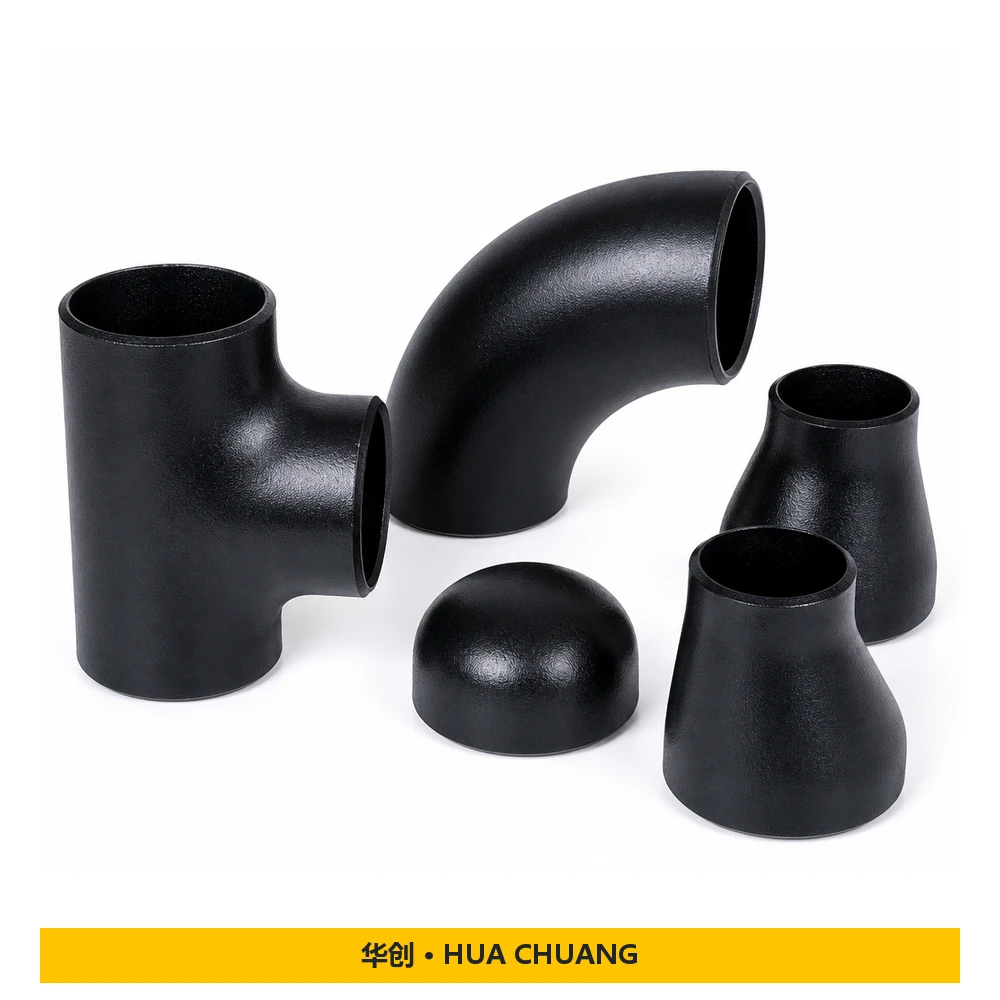

Butt weld pipe fittings Product series — Carbon steel / Stainless steel · A234 WPB / 304L / 316L
Choose the turning angle and bend radius, then specify both end diameters and wall thicknesses. Include tangent lengths when installation space is restricted.
- Product forms
- Pipe elbows / Pipe tees / Pipe end caps / Concentric reducers / Eccentric reducers
- Material / grade
- Carbon steel / Stainless steel · A234 WPB / 304L / 316L
- Catalogue reference
- HC-0352
Product overview
Selection reference: Butt weld pipe fittings Product series — Carbon steel / Stainless steel · A234 WPB / 304L / 316L.
The listed values are alternatives within a series, not one combined specification. Identify the required combination.
Selection identifiers: Material / grade: Carbon steel / Stainless steel · A234 WPB / 304L / 316L.
Choose the turning angle and bend radius, then specify both end diameters and wall thicknesses. Include tangent lengths when installation space is restricted.
Confirm the pipe outside diameter, wall thickness, cap depth and end preparation. State whether the end closure needs additional machining.
Specify large-end and small-end diameters with their wall thicknesses. Confirm the reducer length and alignment with the piping drawing.
In addition to both end sizes, identify the offset and flat-side orientation. Confirm these details against the installation drawing.
Please confirm before quotation: Size designations / Specified standard.
Technical specifications
| Product forms | Pipe elbows / Pipe tees / Pipe end caps / Concentric reducers / Eccentric reducers |
|---|---|
| Material / grade | Carbon steel / Stainless steel · A234 WPB / 304L / 316L |
| Catalogue reference | HC-0352 |
Confirm the material grade, dimensions, pressure class and standard together against the approved drawing before ordering. Schedule denotes wall thickness, not a pressure rating.
Prepare a clear request for quotation
Send a bill of materials or drawing with item quantities, material grades, dimensions, standard and edition, inspection documents, packing and destination. Identify any requirements that still need technical review.
Contact our sales teamProcurement questions
What should I include in an inquiry?
Butt weld pipe fittings Product series — Carbon steel / Stainless steel · A234 WPB / 304L / 316L — Include the material grade, dimensions, applicable standard and quantity.
How are dimensions and service suitability confirmed?
Material / grade: Carbon steel / Stainless steel · A234 WPB / 304L / 316L The applicable standard, mating components and project design conditions must be reviewed together. Size, rating and material combinations are confirmed in the agreed quotation or drawing.
Can I request inspection documents?
List the material certificates, inspection records and traceability documents required by your project. Their scope and availability must be agreed before ordering.
Contact sales
Request a quote
Include the material grade, dimensions, applicable standard and quantity.
