Butt weld pipe fittings Product series — ASME B16.9 / EN 10253 / DIN 2605
Choose the turning angle and bend radius, then specify both end diameters and wall thicknesses. Include tangent lengths when installation space is restricted.
Product illustration; final geometry follows the approved drawing.
Pipe Fittings

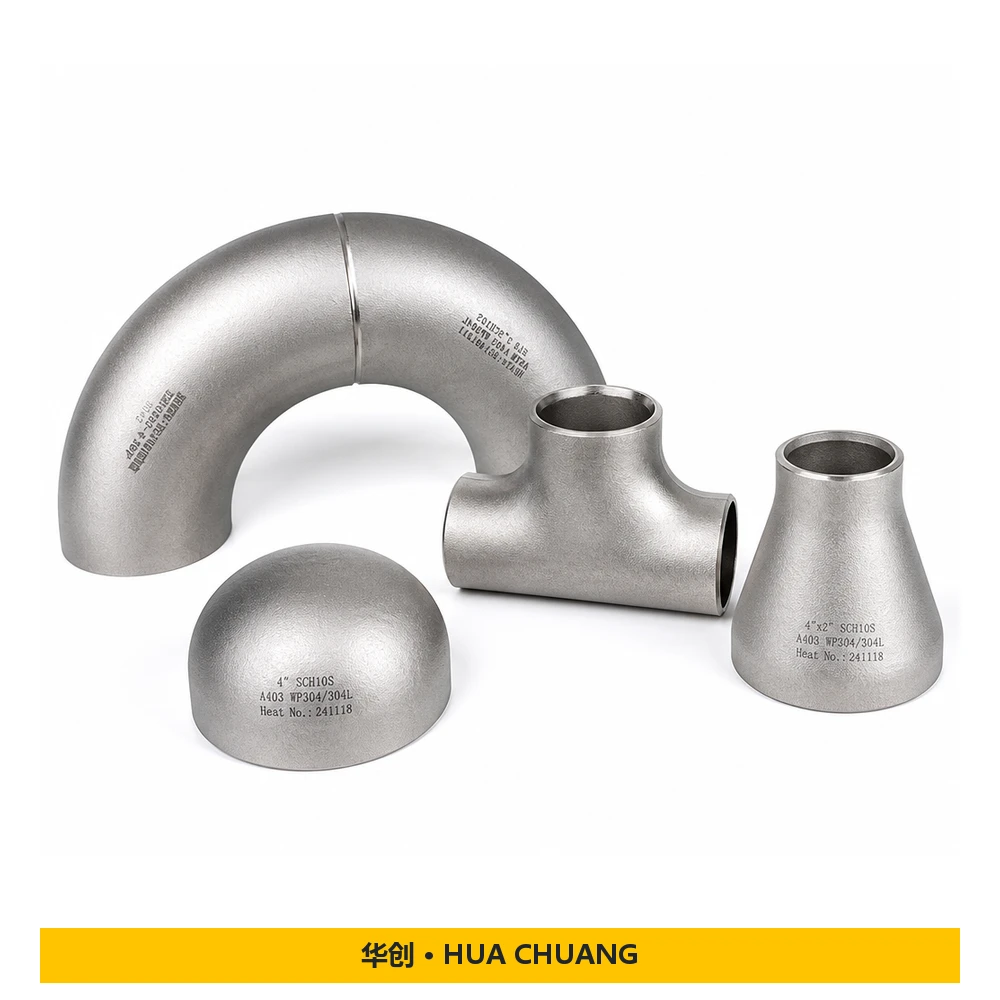

Pipe elbows Product series — Carbon steel / Stainless steel
Choose the turning angle and bend radius, then specify both end diameters and wall thicknesses. Include tangent lengths when installation space is restricted.
- Product forms
- Pipe elbows / Pipe tees / Pipe reducers / Pipe end caps
- Material / grade
- Carbon steel / Stainless steel
- Catalogue reference
- HC-0422
Product overview
Selection reference: Pipe elbows Product series — Carbon steel / Stainless steel.
The listed values are alternatives within a series, not one combined specification. Identify the required combination.
Selection identifiers: Material / grade: Carbon steel / Stainless steel.
Choose the turning angle and bend radius, then specify both end diameters and wall thicknesses. Include tangent lengths when installation space is restricted.
Specify large-end and small-end diameters with their wall thicknesses. Confirm the reducer length and alignment with the piping drawing.
Confirm the pipe outside diameter, wall thickness, cap depth and end preparation. State whether the end closure needs additional machining.
Please confirm before quotation: Size designations / Specified standard.
Technical specifications
| Product forms | Pipe elbows / Pipe tees / Pipe reducers / Pipe end caps |
|---|---|
| Material / grade | Carbon steel / Stainless steel |
| Catalogue reference | HC-0422 |
Confirm the material grade, dimensions, pressure class and standard together against the approved drawing before ordering. Schedule denotes wall thickness, not a pressure rating.
Prepare a clear request for quotation
Send a bill of materials or drawing with item quantities, material grades, dimensions, standard and edition, inspection documents, packing and destination. Identify any requirements that still need technical review.
Contact our sales teamProcurement questions
What should I include in an inquiry?
Pipe elbows Product series — Carbon steel / Stainless steel — Include the material grade, dimensions, applicable standard and quantity.
How are dimensions and service suitability confirmed?
Material / grade: Carbon steel / Stainless steel The applicable standard, mating components and project design conditions must be reviewed together. Size, rating and material combinations are confirmed in the agreed quotation or drawing.
Can I request inspection documents?
List the material certificates, inspection records and traceability documents required by your project. Their scope and availability must be agreed before ordering.
Contact sales
Request a quote
Include the material grade, dimensions, applicable standard and quantity.
