Pipe end caps — ASME B16.9 · SCH40 / SCH80 · Seamless
Confirm the pipe outside diameter, wall thickness, cap depth and end preparation. State whether the end closure needs additional machining.

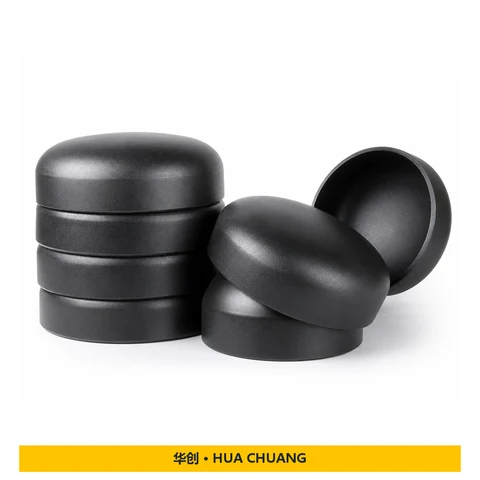

Product illustration; final geometry follows the approved drawing.
Pipe Fittings
Pipe end caps — ASME B16.9 · STD / SCH40 / SCH80 / SCH160 · Black paint
Confirm the pipe outside diameter, wall thickness, cap depth and end preparation. State whether the end closure needs additional machining.
- Product forms
- Pipe end caps
- Specified standard
- ASME B16.9
- Wall thickness / Schedule
- STD / SCH40 / SCH80 / SCH160
- Connection
- Butt weld
Product overview
Selection reference: Pipe end caps — ASME B16.9 · STD / SCH40 / SCH80 / SCH160 · Black paint.
The listed values are alternatives within a series, not one combined specification. Identify the required combination.
Selection identifiers: Specified standard: ASME B16.9; Wall thickness / Schedule: STD / SCH40 / SCH80 / SCH160; Connection: Butt weld; Surface finish: Black paint.
Confirm the pipe outside diameter, wall thickness, cap depth and end preparation. State whether the end closure needs additional machining.
Please confirm before quotation: Material / grade / Size designations.
Technical specifications
| Product forms | Pipe end caps |
|---|---|
| Specified standard | ASME B16.9 |
| Wall thickness / Schedule | STD / SCH40 / SCH80 / SCH160 |
| Connection | Butt weld |
| Surface finish | Black paint |
| Catalogue reference | HC-0487 |
Confirm the material grade, dimensions, pressure class and standard together against the approved drawing before ordering. Schedule denotes wall thickness, not a pressure rating.
Prepare a clear request for quotation
Send a bill of materials or drawing with item quantities, material grades, dimensions, standard and edition, inspection documents, packing and destination. Identify any requirements that still need technical review.
Contact our sales teamProcurement questions
What should I include in an inquiry?
Pipe end caps — ASME B16.9 · STD / SCH40 / SCH80 / SCH160 · Black paint — Include the material grade, dimensions, applicable standard and quantity.
How are dimensions and service suitability confirmed?
Specified standard: ASME B16.9 The applicable standard, mating components and project design conditions must be reviewed together. Size, rating and material combinations are confirmed in the agreed quotation or drawing.
Can I request inspection documents?
List the material certificates, inspection records and traceability documents required by your project. Their scope and availability must be agreed before ordering.
Contact sales
Request a quote
Include the material grade, dimensions, applicable standard and quantity.
