Stainless Steel Elbows
Stainless steel elbows for changes in pipe direction. Confirm the grade, angle, radius, end sizes and wall thickness for your service.

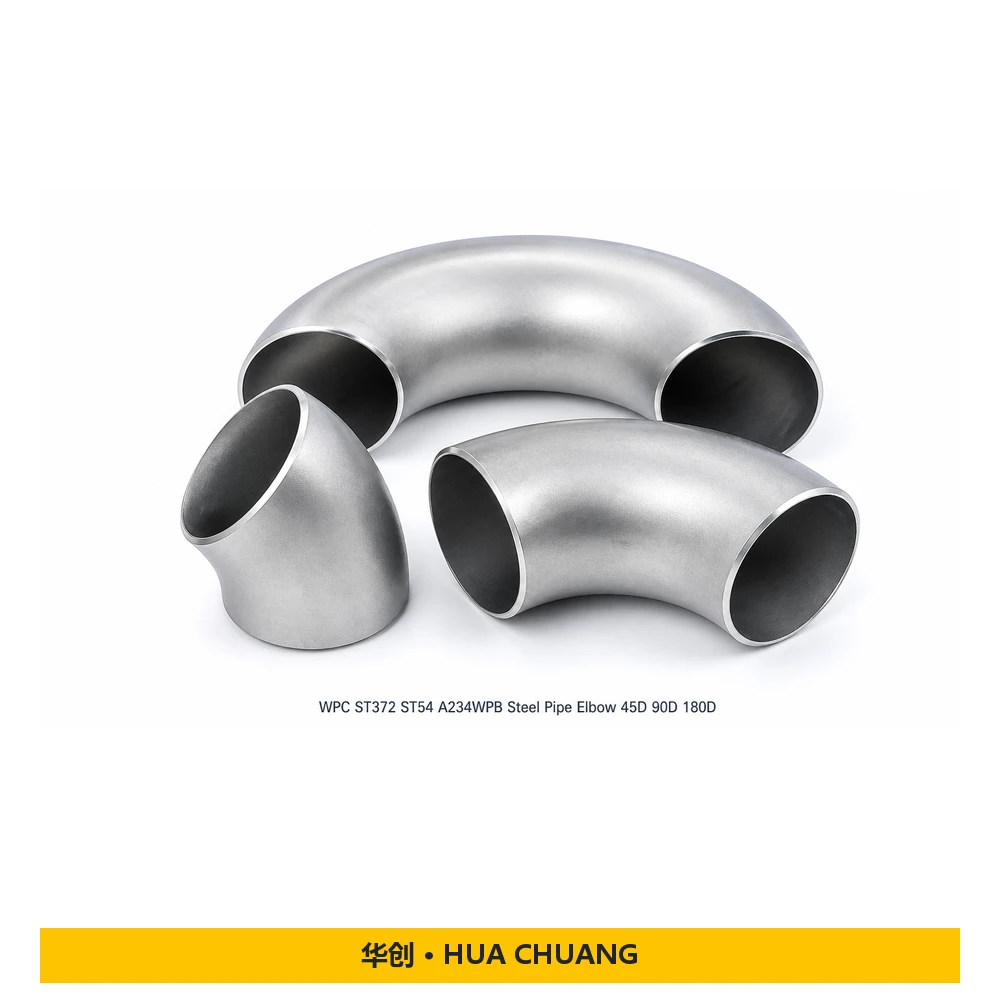

Product illustration; final geometry follows the approved drawing.
Pipe Fittings
Pipe elbows — Carbon steel · ST372 / ST54 / A234 WPB · STD / SCH40 / SCH80 · 45° / 90° / 180°
Choose the turning angle and bend radius, then specify both end diameters and wall thicknesses. Include tangent lengths when installation space is restricted.
- Product forms
- Pipe elbows
- Material / grade
- Carbon steel · ST372 / ST54 / A234 WPB
- Wall thickness / Schedule
- STD / SCH40 / SCH80
- Angle
- 45° / 90° / 180°
Product overview
Selection reference: Pipe elbows — Carbon steel · ST372 / ST54 / A234 WPB · STD / SCH40 / SCH80 · 45° / 90° / 180°.
The listed values are alternatives within a series, not one combined specification. Identify the required combination.
Selection identifiers: Material / grade: Carbon steel · ST372 / ST54 / A234 WPB; Wall thickness / Schedule: STD / SCH40 / SCH80; Angle: 45° / 90° / 180°; Connection: Butt weld.
Choose the turning angle and bend radius, then specify both end diameters and wall thicknesses. Include tangent lengths when installation space is restricted.
Please confirm before quotation: Size designations / Specified standard.
Technical specifications
| Product forms | Pipe elbows |
|---|---|
| Material / grade | Carbon steel · ST372 / ST54 / A234 WPB |
| Wall thickness / Schedule | STD / SCH40 / SCH80 |
| Angle | 45° / 90° / 180° |
| Connection | Butt weld |
| Catalogue reference | HC-0439 |
Confirm the material grade, dimensions, pressure class and standard together against the approved drawing before ordering. Schedule denotes wall thickness, not a pressure rating.
Prepare a clear request for quotation
Send a bill of materials or drawing with item quantities, material grades, dimensions, standard and edition, inspection documents, packing and destination. Identify any requirements that still need technical review.
Contact our sales teamProcurement questions
What should I include in an inquiry?
Pipe elbows — Carbon steel · ST372 / ST54 / A234 WPB · STD / SCH40 / SCH80 · 45° / 90° / 180° — Include the material grade, dimensions, applicable standard and quantity.
How are dimensions and service suitability confirmed?
Material / grade: Carbon steel · ST372 / ST54 / A234 WPB The applicable standard, mating components and project design conditions must be reviewed together. Size, rating and material combinations are confirmed in the agreed quotation or drawing.
Can I request inspection documents?
List the material certificates, inspection records and traceability documents required by your project. Their scope and availability must be agreed before ordering.
Contact sales
Request a quote
Include the material grade, dimensions, applicable standard and quantity.
