Steel Tees

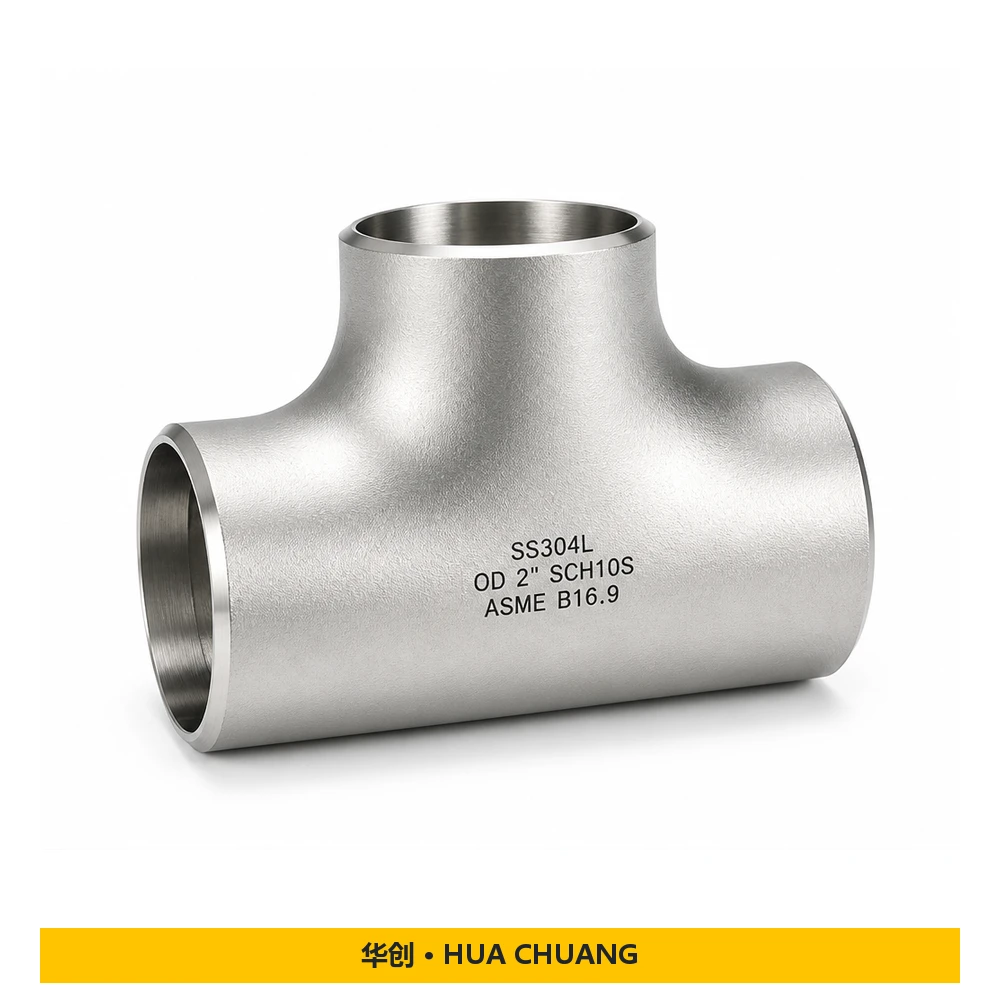

Equal tees — Stainless steel · SS304L / SS316L · STD / SCH40 · 45° / 90° / 180°
Specify the run and branch dimensions explicitly, even for an equal tee. Confirm centre-to-end dimensions and end preparation.
- Product forms
- Equal tees
- Material / grade
- Stainless steel · SS304L / SS316L
- Wall thickness / Schedule
- STD / SCH40
- Angle
- 45° / 90° / 180°
Product overview
Selection reference: Equal tees — Stainless steel · SS304L / SS316L · STD / SCH40 · 45° / 90° / 180°.
The listed values are alternatives within a series, not one combined specification. Identify the required combination.
Selection identifiers: Material / grade: Stainless steel · SS304L / SS316L; Wall thickness / Schedule: STD / SCH40; Angle: 45° / 90° / 180°; Connection: Butt weld.
Specify the run and branch dimensions explicitly, even for an equal tee. Confirm centre-to-end dimensions and end preparation.
Please confirm before quotation: Size designations / Specified standard.
Technical specifications
| Product forms | Equal tees |
|---|---|
| Material / grade | Stainless steel · SS304L / SS316L |
| Wall thickness / Schedule | STD / SCH40 |
| Angle | 45° / 90° / 180° |
| Connection | Butt weld |
| Catalogue reference | HC-0463 |
Confirm the material grade, dimensions, pressure class and standard together against the approved drawing before ordering. Schedule denotes wall thickness, not a pressure rating.
Prepare a clear request for quotation
Send a bill of materials or drawing with item quantities, material grades, dimensions, standard and edition, inspection documents, packing and destination. Identify any requirements that still need technical review.
Contact our sales teamProcurement questions
What should I include in an inquiry?
Equal tees — Stainless steel · SS304L / SS316L · STD / SCH40 · 45° / 90° / 180° — Include the material grade, dimensions, applicable standard and quantity.
How are dimensions and service suitability confirmed?
Material / grade: Stainless steel · SS304L / SS316L The applicable standard, mating components and project design conditions must be reviewed together. Size, rating and material combinations are confirmed in the agreed quotation or drawing.
Can I request inspection documents?
List the material certificates, inspection records and traceability documents required by your project. Their scope and availability must be agreed before ordering.
Contact sales
Request a quote
Include the material grade, dimensions, applicable standard and quantity.
