Steel Tees

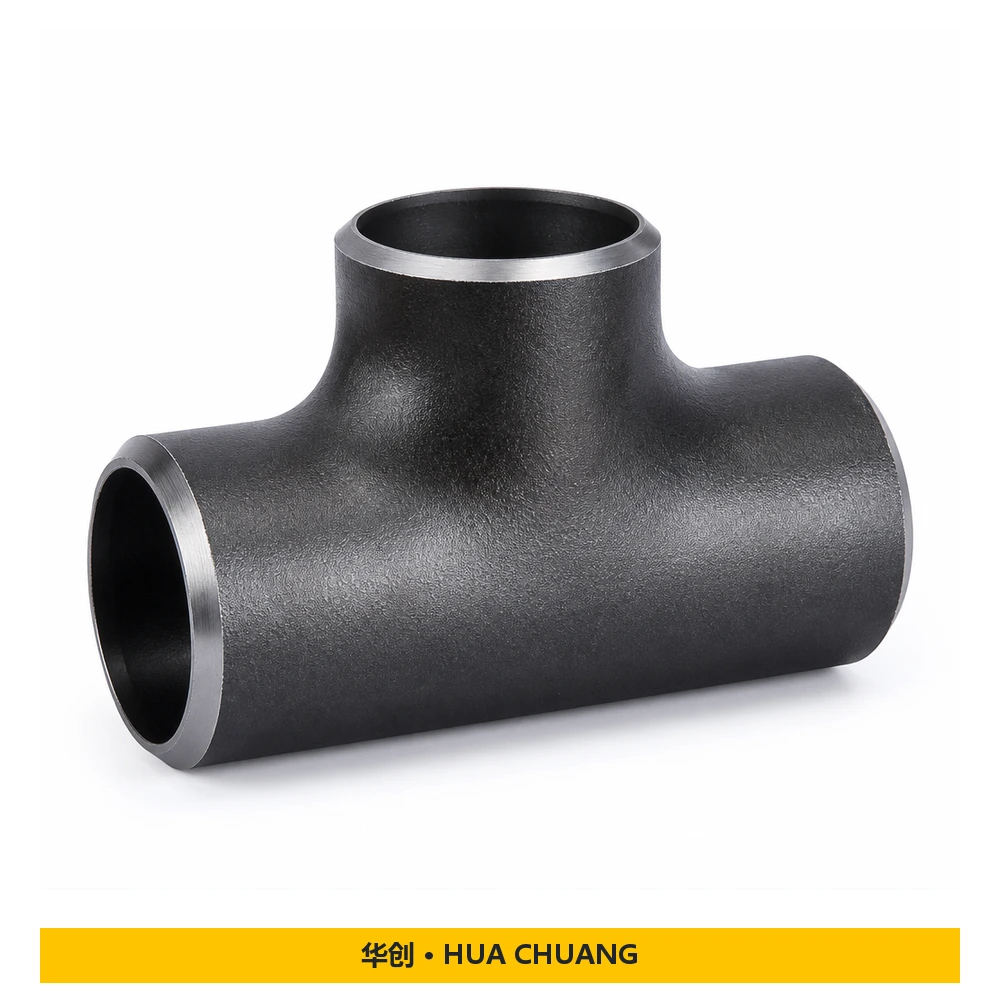

Pipe tees — Carbon steel · SCH20
State whether an equal or reducing tee is required. Specify the run size and branch size separately, including wall thickness at each connection. Confirm branch orientation and centre-to-end dimensions from the piping layout. A tee and a reducer have different connection geometry and should be listed as separate items.
- Product forms
- Pipe tees
- Material / grade
- Carbon steel
- Wall thickness / Schedule
- SCH20
- Connection
- Butt weld
Product overview
Selection reference: Pipe tees — Carbon steel · SCH20.
Selection identifiers: Material / grade: Carbon steel; Wall thickness / Schedule: SCH20; Connection: Butt weld.
State whether an equal or reducing tee is required. Specify the run size and branch size separately, including wall thickness at each connection. Confirm branch orientation and centre-to-end dimensions from the piping layout. A tee and a reducer have different connection geometry and should be listed as separate items.
Please confirm before quotation: Size designations / Specified standard.
Technical specifications
| Product forms | Pipe tees |
|---|---|
| Material / grade | Carbon steel |
| Wall thickness / Schedule | SCH20 |
| Connection | Butt weld |
| Catalogue reference | HC-0449 |
Confirm the material grade, dimensions, pressure class and standard together against the approved drawing before ordering. Schedule denotes wall thickness, not a pressure rating.
Prepare a clear request for quotation
Send a bill of materials or drawing with item quantities, material grades, dimensions, standard and edition, inspection documents, packing and destination. Identify any requirements that still need technical review.
Contact our sales teamProcurement questions
What should I include in an inquiry?
Pipe tees — Carbon steel · SCH20 — Include the material grade, dimensions, applicable standard and quantity.
How are dimensions and service suitability confirmed?
Material / grade: Carbon steel The applicable standard, mating components and project design conditions must be reviewed together. Size, rating and material combinations are confirmed in the agreed quotation or drawing.
Can I request inspection documents?
List the material certificates, inspection records and traceability documents required by your project. Their scope and availability must be agreed before ordering.
Contact sales
Request a quote
Include the material grade, dimensions, applicable standard and quantity.
