Steel Flanges

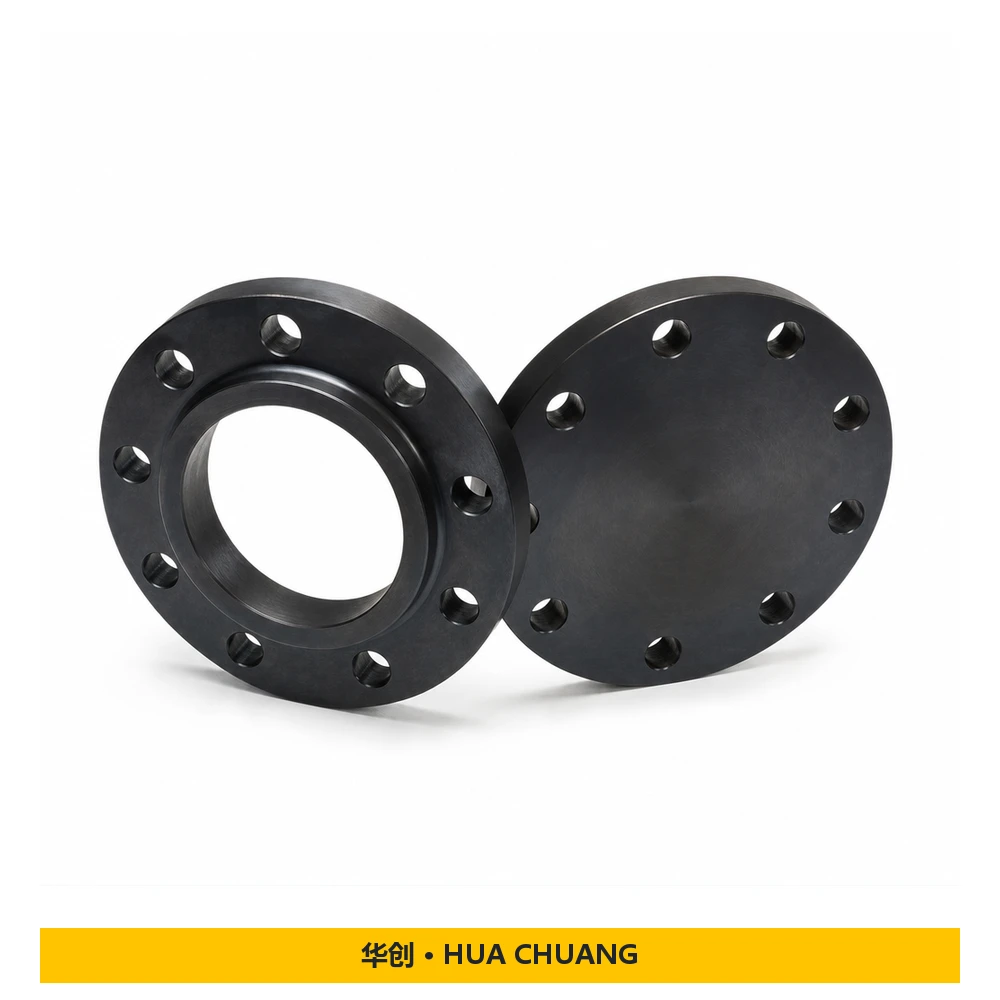

Slip-on flanges / Blind flanges Product series — BS 4504 / BS 10 · Carbon steel · DN200 · PN16
Specify the pipe outside diameter and flange bore. Confirm the fit, facing and weld arrangement before ordering.
- Product forms
- Slip-on flanges / Blind flanges
- Specified standard
- BS 4504 / BS 10
- Material / grade
- Carbon steel
- Size designations
- DN200
Product overview
Selection reference: Slip-on flanges / Blind flanges Product series — BS 4504 / BS 10 · Carbon steel · DN200 · PN16.
The listed values are alternatives within a series, not one combined specification. Identify the required combination.
Selection identifiers: Specified standard: BS 4504 / BS 10; Material / grade: Carbon steel; Size designations: DN200; Pressure designation: PN16.
Specify the pipe outside diameter and flange bore. Confirm the fit, facing and weld arrangement before ordering.
For a closed pipe end, confirm the mating flange drilling, facing and required thickness. State whether any tapping or opening is required.
Technical specifications
| Product forms | Slip-on flanges / Blind flanges |
|---|---|
| Specified standard | BS 4504 / BS 10 |
| Material / grade | Carbon steel |
| Size designations | DN200 |
| Pressure designation | PN16 |
| Catalogue reference | HC-0291 |
Confirm the material grade, dimensions, pressure class and standard together against the approved drawing before ordering. Schedule denotes wall thickness, not a pressure rating.
Prepare a clear request for quotation
Send a bill of materials or drawing with item quantities, material grades, dimensions, standard and edition, inspection documents, packing and destination. Identify any requirements that still need technical review.
Contact our sales teamProcurement questions
What should I include in an inquiry?
Slip-on flanges / Blind flanges Product series — BS 4504 / BS 10 · Carbon steel · DN200 · PN16 — Include the material grade, dimensions, applicable standard and quantity.
How are dimensions and service suitability confirmed?
Specified standard: BS 4504 / BS 10; Material / grade: Carbon steel; Size designations: DN200 The applicable standard, mating components and project design conditions must be reviewed together. Size, rating and material combinations are confirmed in the agreed quotation or drawing.
Can I request inspection documents?
List the material certificates, inspection records and traceability documents required by your project. Their scope and availability must be agreed before ordering.
Contact sales
Request a quote
Include the material grade, dimensions, applicable standard and quantity.
