Steel Flanges

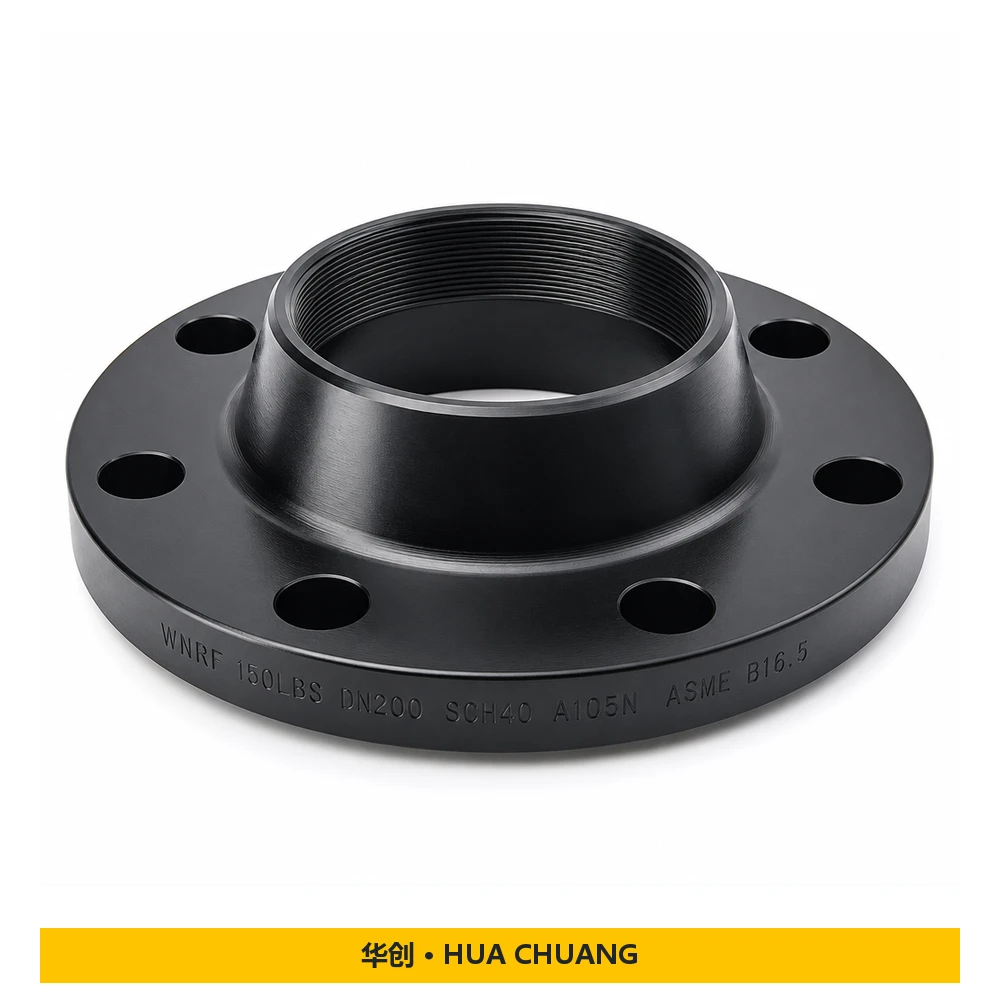

Weld neck flanges / Threaded flanges Product series — Carbon steel · A105N · DN200 · 150LBS · Black paint
Confirm the neck bore, weld preparation and mating pipe wall together. Identify the required flange facing on the drawing.
- Product forms
- Weld neck flanges / Threaded flanges
- Material / grade
- Carbon steel · A105N
- Size designations
- DN200
- Pressure designation
- 150LBS
Product overview
Selection reference: Weld neck flanges / Threaded flanges Product series — Carbon steel · A105N · DN200 · 150LBS · Black paint.
The listed values are alternatives within a series, not one combined specification. Identify the required combination.
Selection identifiers: Material / grade: Carbon steel · A105N; Size designations: DN200; Pressure designation: 150LBS; Connection: Threaded; Surface finish: Black paint.
Confirm the neck bore, weld preparation and mating pipe wall together. Identify the required flange facing on the drawing.
State the thread standard, nominal size and required seal arrangement. Do not select a mating component by nominal diameter alone.
Please confirm before quotation: Specified standard.
Technical specifications
| Product forms | Weld neck flanges / Threaded flanges |
|---|---|
| Material / grade | Carbon steel · A105N |
| Size designations | DN200 |
| Pressure designation | 150LBS |
| Connection | Threaded |
| Surface finish | Black paint |
| Catalogue reference | HC-0041 |
Confirm the material grade, dimensions, pressure class and standard together against the approved drawing before ordering. Schedule denotes wall thickness, not a pressure rating.
Prepare a clear request for quotation
Send a bill of materials or drawing with item quantities, material grades, dimensions, standard and edition, inspection documents, packing and destination. Identify any requirements that still need technical review.
Contact our sales teamProcurement questions
What should I include in an inquiry?
Weld neck flanges / Threaded flanges Product series — Carbon steel · A105N · DN200 · 150LBS · Black paint — Include the material grade, dimensions, applicable standard and quantity.
How are dimensions and service suitability confirmed?
Material / grade: Carbon steel · A105N; Size designations: DN200 The applicable standard, mating components and project design conditions must be reviewed together. Size, rating and material combinations are confirmed in the agreed quotation or drawing.
Can I request inspection documents?
List the material certificates, inspection records and traceability documents required by your project. Their scope and availability must be agreed before ordering.
Contact sales
Request a quote
Include the material grade, dimensions, applicable standard and quantity.
