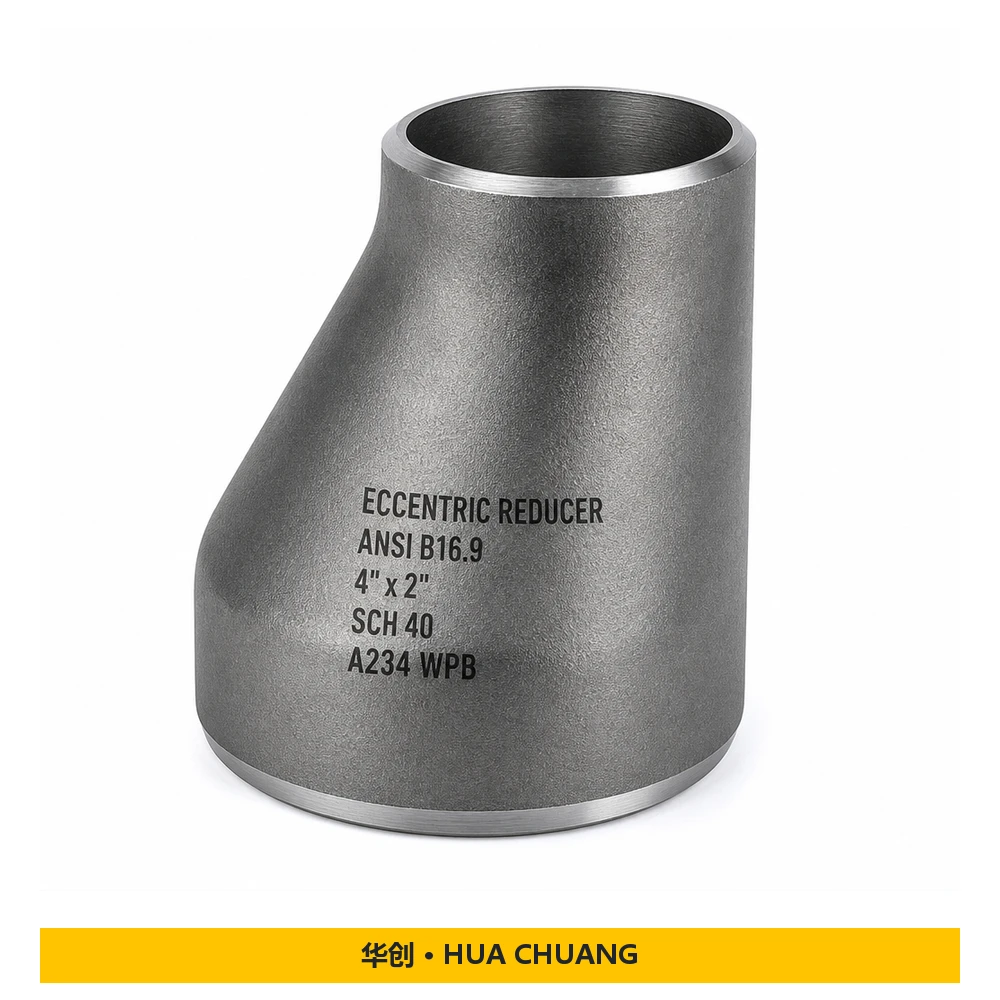

Product illustration; final geometry follows the approved drawing.
In addition to both end sizes, identify the offset and flat-side orientation. Confirm these details against the installation drawing.
Selection reference: Eccentric reducers — ASME B16.9 · Carbon steel · A234 WPB.
Selection identifiers: Specified standard: ASME B16.9; Material / grade: Carbon steel · A234 WPB; Connection: Butt weld.
In addition to both end sizes, identify the offset and flat-side orientation. Confirm these details against the installation drawing.
Please confirm before quotation: Size designations.
| Product forms | Eccentric reducers |
|---|---|
| Specified standard | ASME B16.9 |
| Material / grade | Carbon steel · A234 WPB |
| Connection | Butt weld |
| Catalogue reference | HC-0455 |
Confirm the material grade, dimensions, pressure class and standard together against the approved drawing before ordering. Schedule denotes wall thickness, not a pressure rating.
Send a bill of materials or drawing with item quantities, material grades, dimensions, standard and edition, inspection documents, packing and destination. Identify any requirements that still need technical review.
Contact our sales teamEccentric reducers — ASME B16.9 · Carbon steel · A234 WPB — Include the material grade, dimensions, applicable standard and quantity.
Specified standard: ASME B16.9; Material / grade: Carbon steel · A234 WPB The applicable standard, mating components and project design conditions must be reviewed together. Size, rating and material combinations are confirmed in the agreed quotation or drawing.
List the material certificates, inspection records and traceability documents required by your project. Their scope and availability must be agreed before ordering.
Include the material grade, dimensions, applicable standard and quantity.
State whether an equal or reducing tee is required. Specify the run size and branch size separately, including wall thickness at each connection. Confirm branch orientation and centre-to-end dimensions from the piping layout. A tee and a reducer have different connection geometry and should be listed as separate items.
State whether an equal or reducing tee is required. Specify the run size and branch size separately, including wall thickness at each connection. Confirm branch orientation and centre-to-end dimensions from the piping layout. A tee and a reducer have different connection geometry and should be listed as separate items.
Identify the main-run size and reduced branch size separately. Confirm branch orientation, wall thicknesses and centre-to-end dimensions.
Send us your drawings or specifications — our engineers will reply with a competitive quotation within 24 hours.
