Steel Tees

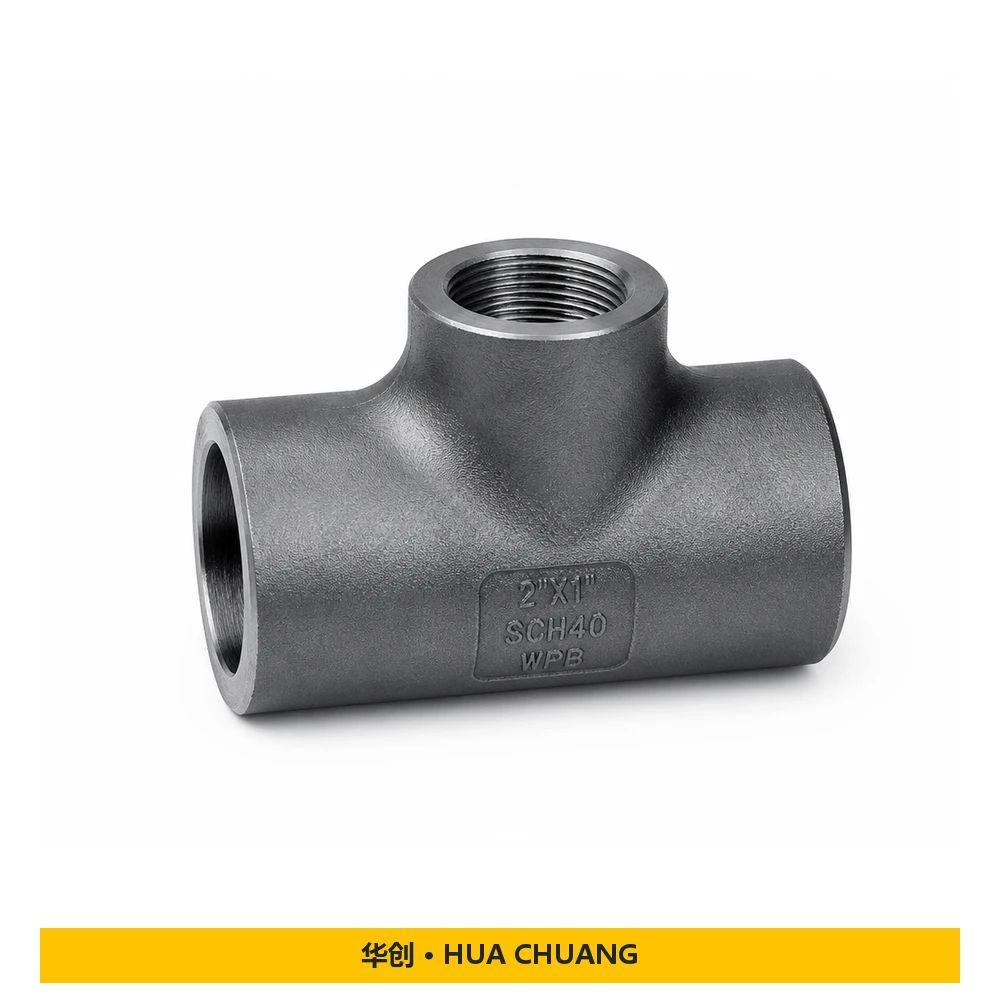

Reducing tees — ASME B16.9 · Carbon steel · A234 WPB · DN50 · SCH 40
Identify the main-run size and reduced branch size separately. Confirm branch orientation, wall thicknesses and centre-to-end dimensions.
- Product forms
- Reducing tees
- Specified standard
- ASME B16.9
- Material / grade
- Carbon steel · A234 WPB
- Size designations
- DN50
Product overview
Selection reference: Reducing tees — ASME B16.9 · Carbon steel · A234 WPB · DN50 · SCH 40.
Selection identifiers: Specified standard: ASME B16.9; Material / grade: Carbon steel · A234 WPB; Size designations: DN50; Wall thickness / Schedule: SCH 40; Connection: Butt weld.
Identify the main-run size and reduced branch size separately. Confirm branch orientation, wall thicknesses and centre-to-end dimensions.
Technical specifications
| Product forms | Reducing tees |
|---|---|
| Specified standard | ASME B16.9 |
| Material / grade | Carbon steel · A234 WPB |
| Size designations | DN50 |
| Wall thickness / Schedule | SCH 40 |
| Connection | Butt weld |
| Catalogue reference | HC-0344 |
Confirm the material grade, dimensions, pressure class and standard together against the approved drawing before ordering. Schedule denotes wall thickness, not a pressure rating.
Prepare a clear request for quotation
Send a bill of materials or drawing with item quantities, material grades, dimensions, standard and edition, inspection documents, packing and destination. Identify any requirements that still need technical review.
Contact our sales teamProcurement questions
What should I include in an inquiry?
Reducing tees — ASME B16.9 · Carbon steel · A234 WPB · DN50 · SCH 40 — Include the material grade, dimensions, applicable standard and quantity.
How are dimensions and service suitability confirmed?
Specified standard: ASME B16.9; Material / grade: Carbon steel · A234 WPB; Size designations: DN50 The applicable standard, mating components and project design conditions must be reviewed together. Size, rating and material combinations are confirmed in the agreed quotation or drawing.
Can I request inspection documents?
List the material certificates, inspection records and traceability documents required by your project. Their scope and availability must be agreed before ordering.
Contact sales
Request a quote
Include the material grade, dimensions, applicable standard and quantity.
Related products
Reducing tees — EN 10253-1 / DIN 2605-1 · Stainless steel · 304
Identify the main-run size and reduced branch size separately. Confirm branch orientation, wall thicknesses and centre-to-end dimensions.

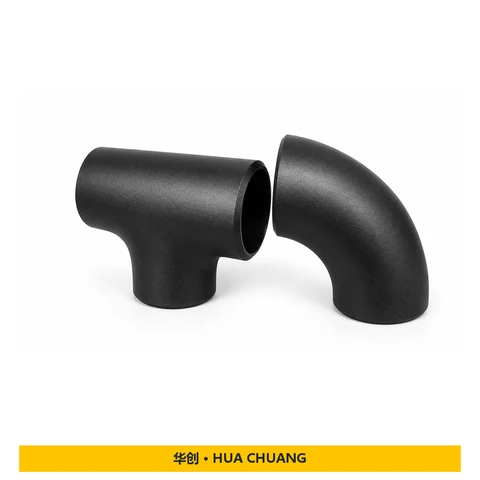

Reducing tees — SCH40 / SCH80 / SCH160 / 2MM – 100MM
