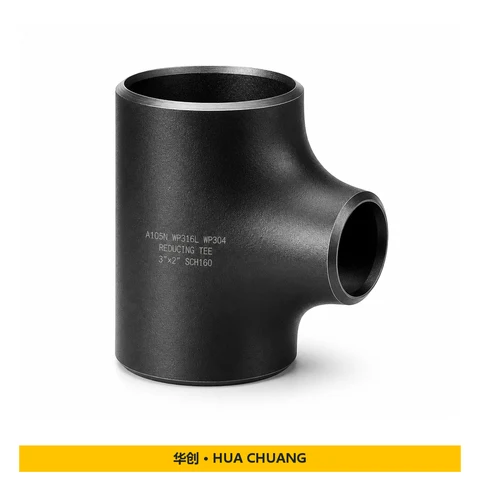

Reducing tees — Stainless steel · WP316L / WP304 · Seamless
Identify the main-run size and reduced branch size separately. Confirm branch orientation, wall thicknesses and centre-to-end dimensions.
Product illustration; final geometry follows the approved drawing.
Steel Tees
Reducing tees — SCH40 / SCH80 / SCH160 / 2MM – 100MM
Identify the main-run size and reduced branch size separately. Confirm branch orientation, wall thicknesses and centre-to-end dimensions.
- Product forms
- Reducing tees
- Wall thickness / Schedule
- SCH40 / SCH80 / SCH160 / 2 mm – 100 mm
- Catalogue reference
- HC-0447
Product overview
Selection reference: Reducing tees — SCH40 / SCH80 / SCH160 / 2MM – 100MM.
The listed values are alternatives within a series, not one combined specification. Identify the required combination.
Selection identifiers: Wall thickness / Schedule: SCH40 / SCH80 / SCH160 / 2 mm – 100 mm.
Identify the main-run size and reduced branch size separately. Confirm branch orientation, wall thicknesses and centre-to-end dimensions.
Please confirm before quotation: Material / grade / Size designations / Specified standard.
Technical specifications
| Product forms | Reducing tees |
|---|---|
| Wall thickness / Schedule | SCH40 / SCH80 / SCH160 / 2 mm – 100 mm |
| Catalogue reference | HC-0447 |
Confirm the material grade, dimensions, pressure class and standard together against the approved drawing before ordering. Schedule denotes wall thickness, not a pressure rating.
Prepare a clear request for quotation
Send a bill of materials or drawing with item quantities, material grades, dimensions, standard and edition, inspection documents, packing and destination. Identify any requirements that still need technical review.
Contact our sales teamProcurement questions
What should I include in an inquiry?
Reducing tees — SCH40 / SCH80 / SCH160 / 2MM – 100MM — Include the material grade, dimensions, applicable standard and quantity.
How are dimensions and service suitability confirmed?
The applicable standard, mating components and project design conditions must be reviewed together. Size, rating and material combinations are confirmed in the agreed quotation or drawing.
Can I request inspection documents?
List the material certificates, inspection records and traceability documents required by your project. Their scope and availability must be agreed before ordering.
Contact sales
Request a quote
Include the material grade, dimensions, applicable standard and quantity.
