Reducing tees — SCH40 / SCH80 / SCH160 / 2MM – 100MM
Identify the main-run size and reduced branch size separately. Confirm branch orientation, wall thicknesses and centre-to-end dimensions.

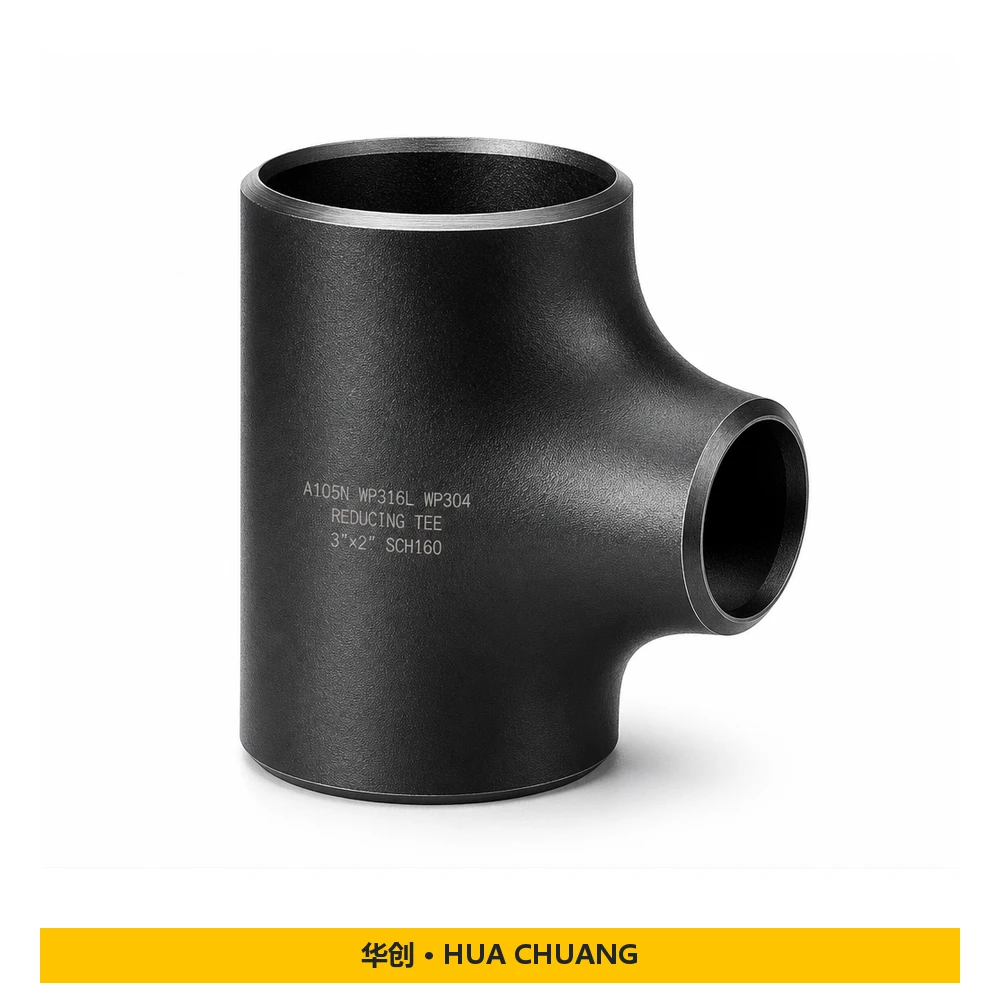

Product illustration; final geometry follows the approved drawing.
Steel Tees
Reducing tees — Stainless steel · WP316L / WP304 · Seamless
Identify the main-run size and reduced branch size separately. Confirm branch orientation, wall thicknesses and centre-to-end dimensions.
- Product forms
- Reducing tees
- Material / grade
- Stainless steel · WP316L / WP304
- Connection
- Butt weld
- Construction
- Seamless
Product overview
Selection reference: Reducing tees — Stainless steel · WP316L / WP304 · Seamless.
The listed values are alternatives within a series, not one combined specification. Identify the required combination.
Selection identifiers: Material / grade: Stainless steel · WP316L / WP304; Connection: Butt weld; Construction: Seamless.
Identify the main-run size and reduced branch size separately. Confirm branch orientation, wall thicknesses and centre-to-end dimensions.
The source combines incompatible or unclear material/standard identifiers. These have been withheld from the confirmed specification; material and applicable standard require technical confirmation.
Please confirm before quotation: Size designations / Specified standard.
Technical specifications
| Product forms | Reducing tees |
|---|---|
| Material / grade | Stainless steel · WP316L / WP304 |
| Connection | Butt weld |
| Construction | Seamless |
| Technical clarification | The source combines incompatible or unclear material/standard identifiers. These have been withheld from the confirmed specification; material and applicable standard require technical confirmation. |
| Catalogue reference | HC-0451 |
Confirm the material grade, dimensions, pressure class and standard together against the approved drawing before ordering. Schedule denotes wall thickness, not a pressure rating.
Prepare a clear request for quotation
Send a bill of materials or drawing with item quantities, material grades, dimensions, standard and edition, inspection documents, packing and destination. Identify any requirements that still need technical review.
Contact our sales teamProcurement questions
What should I include in an inquiry?
Reducing tees — Stainless steel · WP316L / WP304 · Seamless — Include the material grade, dimensions, applicable standard and quantity.
How are dimensions and service suitability confirmed?
Material / grade: Stainless steel · WP316L / WP304 The applicable standard, mating components and project design conditions must be reviewed together. Size, rating and material combinations are confirmed in the agreed quotation or drawing.
Can I request inspection documents?
List the material certificates, inspection records and traceability documents required by your project. Their scope and availability must be agreed before ordering.
Contact sales
Request a quote
Include the material grade, dimensions, applicable standard and quantity.
