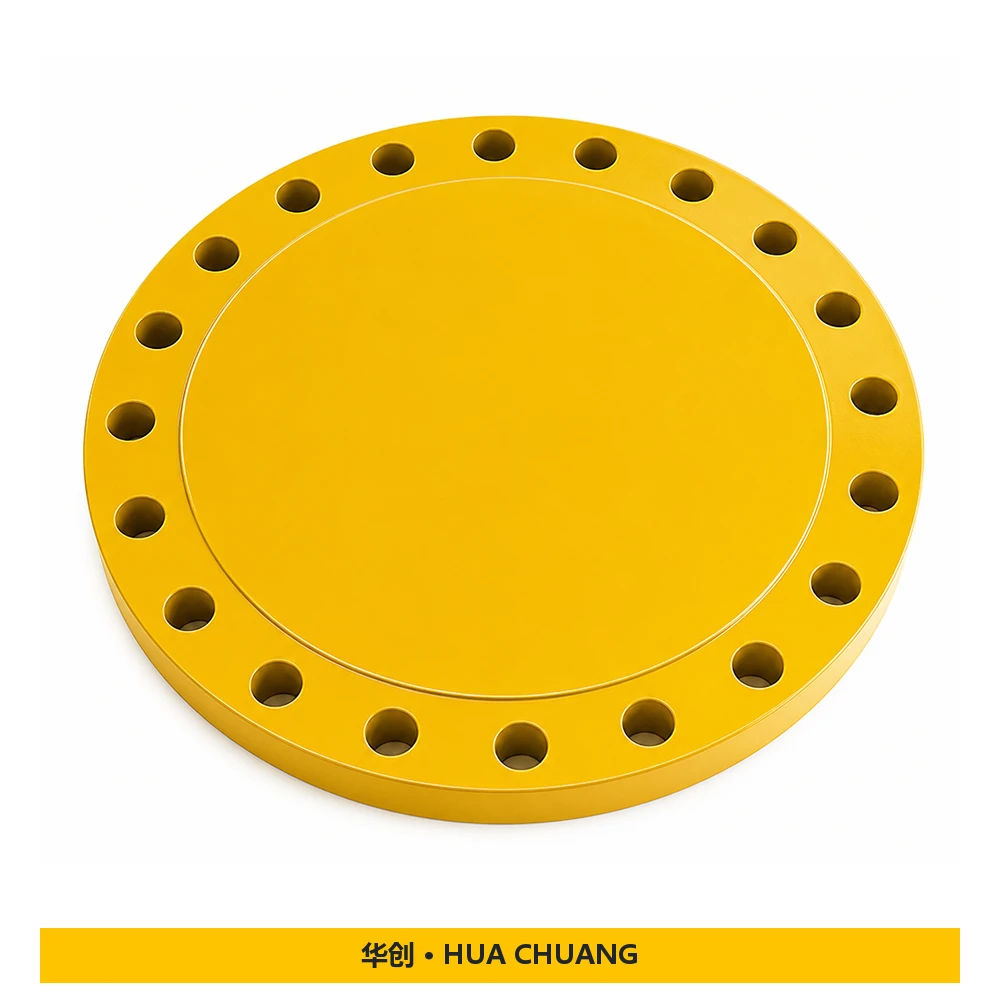

Blind flanges — JIS B2220 · Carbon steel · 10K · Yellow paint
For a closed pipe end, confirm the mating flange drilling, facing and required thickness. State whether any tapping or opening is required.
- Product forms
- Blind flanges
- Specified standard
- JIS B2220
- Material / grade
- Carbon steel
- Pressure designation
- 10K
Product overview
Selection reference: Blind flanges — JIS B2220 · Carbon steel · 10K · Yellow paint.
Selection identifiers: Specified standard: JIS B2220; Material / grade: Carbon steel; Pressure designation: 10K; Surface finish: Yellow paint.
For a closed pipe end, confirm the mating flange drilling, facing and required thickness. State whether any tapping or opening is required.
Please confirm before quotation: Size designations.
Technical specifications
| Product forms | Blind flanges |
|---|---|
| Specified standard | JIS B2220 |
| Material / grade | Carbon steel |
| Pressure designation | 10K |
| Surface finish | Yellow paint |
| Catalogue reference | HC-0184 |
Confirm the material grade, dimensions, pressure class and standard together against the approved drawing before ordering. Schedule denotes wall thickness, not a pressure rating.
Prepare a clear request for quotation
Send a bill of materials or drawing with item quantities, material grades, dimensions, standard and edition, inspection documents, packing and destination. Identify any requirements that still need technical review.
Contact our sales teamProcurement questions
What should I include in an inquiry?
Blind flanges — JIS B2220 · Carbon steel · 10K · Yellow paint — Include the material grade, dimensions, applicable standard and quantity.
How are dimensions and service suitability confirmed?
Specified standard: JIS B2220; Material / grade: Carbon steel The applicable standard, mating components and project design conditions must be reviewed together. Size, rating and material combinations are confirmed in the agreed quotation or drawing.
Can I request inspection documents?
List the material certificates, inspection records and traceability documents required by your project. Their scope and availability must be agreed before ordering.
Contact sales
Request a quote
Include the material grade, dimensions, applicable standard and quantity.
